전자동 HDPE ＬＤＰＥ 단일층 바닥 밀봉 백 기계

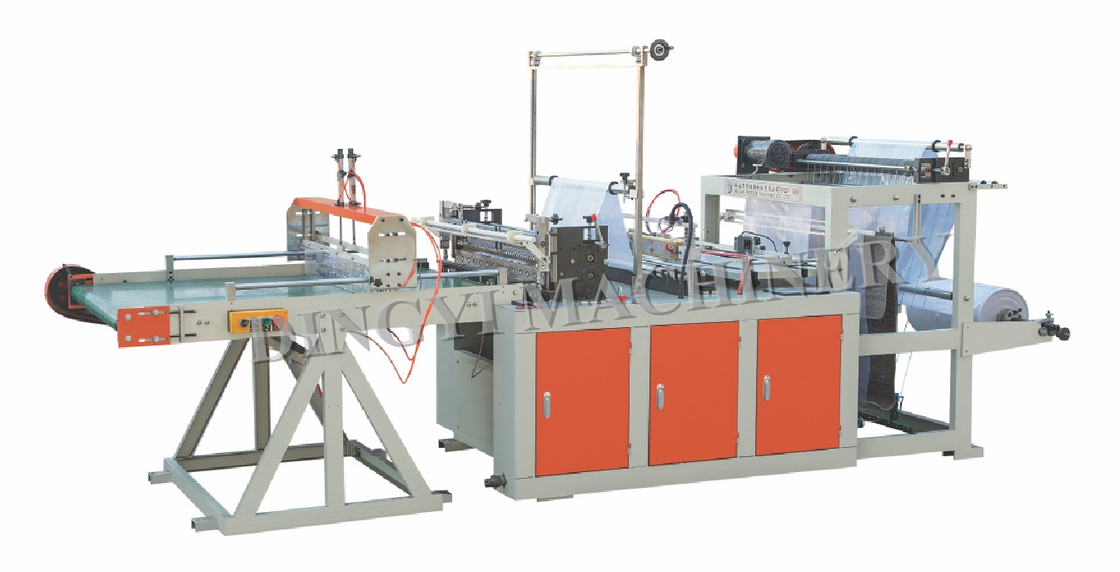

Single Layer Sinle Line Bottom Sealing Cold Cutting Bag Making Machine

Single layer Single line bottom sealing bag making machine has such functions as photoelectric automatic tracking microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value. High compensation accuracy with such characteristics as neatbags, little error and high automatic of whole machine, so it is a kind of ideal equipment for producing blank bags, color bags, flat bags and vest bags. And other various plastic soft packing bags.

Standard equipment
1. Yaskawa Servo Motor

2. Photocell Sick Germany

3. Touch Screen Control

4. PLC Control

5. Inverter Delta

1. SPECIFICATION:

• Model: DY-850DF
• Max. Width (mm):800mm
• Max. length (mm):1000mm
• Photocell: 1
• Cutting Thickness (mm):0.05-0.20mm
• Bag Output (pcs/min):20-120pcs/mi
• Main Power (kw):1.5kw
• Feeding Motor: 400w
• Weight (kg):1200kg
• Overall Dimensions (L×W×H)(mm): 2800×1700×1600

2. FEATURES:

This Machine adopts imported servo motor control system, follow-up by sensor, length fixed freely, correctly and stably and it is suitable for plastics film , like LDPE, HDPE, LLDPE, ECT, labors are saved and efficiency is high

It is a kind of ideal equipment for producing blank bags , color bags, flat bags and vest bag, ext. And other various plastics soft packing bags

3. MAIN DEVICE:

• Material Rack (1 pcs)
• Feeding Conveyer Device and Feeding Motor
• Monitoring Photoelectric Eye (Photocell) (1 pc)
• Heat sealing Knife (1 pcs)
• Correcting Rack of Sealing Mouth Length (Gantry Rack)
• Material Releasing Rubble Roller
